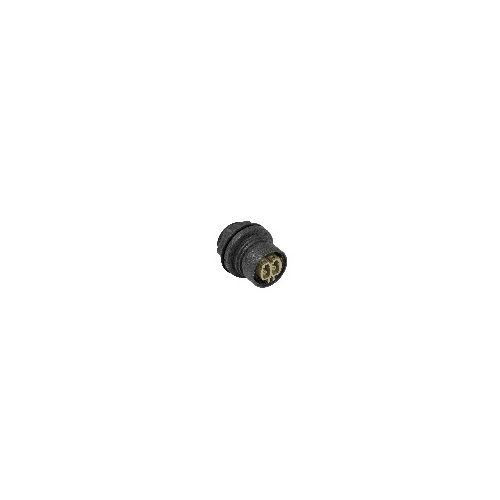

PXF6052B Rear Panel Mount Fiber Connector

PXF6052B OM1 Multi Mode Fibre Rear Panel Mount Connector - no cable supplied, suitable for LC type Connectors

More Information
Complete Electronics Part No.	PXF6052B
Manufacturers Part No.	PXF6052B

Description

PXF6052B

Rear Panel Mount Fiber Connector Without Cable

OM1 Multi Mode Cable
Accommodates industry standard LC interfaces as per IEC 61754-20
Diameter Over Coupling Ring: 32mm
Operating Temperature: -25 to 70°C
Application: Rear Panel Mount
Max Insetion Loss: 0.2 dB
Protection Rating: IP68
30 degree locking mechanism

Cable Lengths Available

If Blank = No Cable Supplied
AA = 1 (1M on chassis version only PXF6052)
AA = 5 metres
AB = 10 metres
AC = 15 metres
AD = 25 metres
AE = 50 metres
AF = 100 metres
AG = 150 metres
AH = 200 metres
AJ = 300 metres

Part Number Examples

PXF6050A = Flex connector, for OM3 (Multimode) no cable supplied
PXF6050AAA = Flex connector, OM3 multimode cable, 5 metre length to LC type connector
PXF6052BAA = Panel mount connector, OM1 multi mode cable, 1 metre length to LC type connector

Fiber Assignment

Download Datasheet
