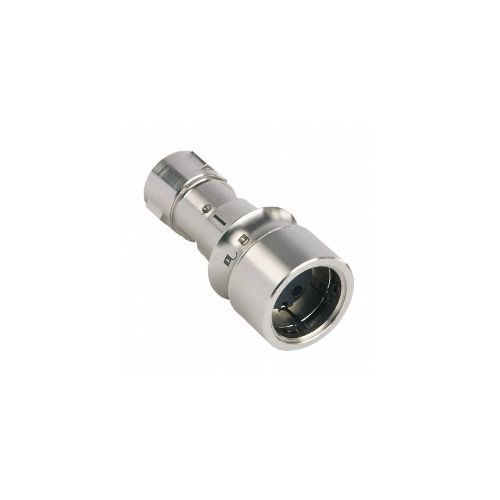

PXM6010/02S/ST/0405 | PXM601002SST0405 | Bulgin 6000 Series

Flex connector, 2 pole socket contacts
More Information
Complete Electronics Part No PXM601002SST0405
Manufacturers Part No. PXM6010/02S/ST/0405
Type Cable Socket
Number of poles 2
Cable Gland Size 4.0-5.0 mm
Termination Screw
Male/Female Female
Housing Construction Metal
Cable Entry Straight
Rated Voltage 277V
Rated Current 16A
IP Rating IP66 / 68 / 69K
Description

PXM6010/02S/ST/0405

Flex connector, 2 pole socket contacts

  • Voltage: 277Vac/dc
  • Current: 16Amps
  • Gender: Female
  • Application: Cable Mount
  • Contacts: Sockets
  • Termination: Screw Wire Size: 1.5mm
  • Operating Temp. Range: –40°C to +120°C
