PXM6010/03S/CR/0709 | PXM601003SCR0709 | Bulgin 6000 Series

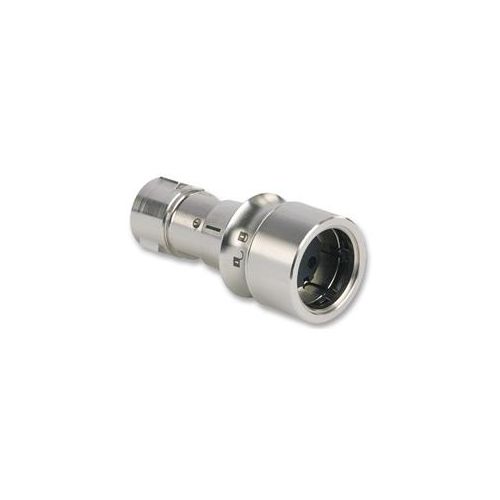

6000 Series Buccaneer Metal 3 Pole Female Flex Cable Connector
| Complete Electronics Part No. | PXM601003SCR0709 |
|---|---|
| Manufacturers Part No. | PXM6010/03S/CR/0709 |
| Type: | Appliance Socket |
| Mounting: | Cable |
| Number of poles | 3 |
| Cable Gland Size: | 7.0-9.0 mm |
| Termination: | Crimp |
| Male/Female: | Female |
| Housing Construction: | Metal |
| Cable Entry: | Straight |
| Rated Voltage: | 277V |
| Rated Current: | 16A |
| IP Rating: | IP66 / 68 / 69K |
Description
PXM601003SCR0709
Metal 3 Pole Female Flex Cable Connector
- Mates with Flex Cable Connector
- Voltage: 277Vac/dc
- Current: 16Amps
- Gender: Female
- Application: Cable Mount
- Contacts: Sockets
- Termination: Crimp, excluded, order separately
- Temperature: -40° to +120°C
- Gland Size: 7-9mm
- IP Rating: Water and Dust Proof to IP66 / IP68 / IP69K
- Approvals: UL, CSA, VDE & CCC
