PXM6011/02P/CR/0507/SN | PXM601102PCR0507SN | Bulgin 6000 Series

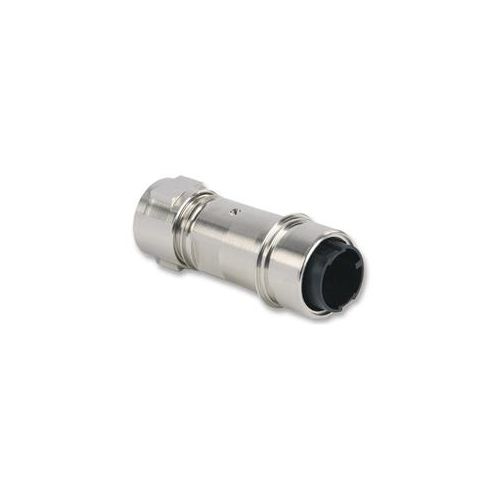

6000 Series Buccaneer Metal 2 Pole Male Flex In-Line Cable Connector
| Complete Electronics Part No. | PXM601102PCR0507SN |
|---|---|
| Manufacturers Part No. | PXM6011/02P/CR/0507/SN |
| Type: | Cable Plug |
| Mounting: | Cable |
| Number of poles | 2 |
| Cable Gland Size: | 5.0-7.0 mm |
| Termination: | Crimp |
| Male/Female: | Male |
| Housing Construction: | Metal |
| Cable Entry: | Straight |
| Rated Voltage: | 277V |
| Rated Current: | 16A |
| IP Rating: | IP66 / 68 / 69K |
Description
PXM601102PCR0507SN
Metal 2 Pole Male Flex In-Line Cable Connector
- Mates with Flex Cable Connector
- Voltage: 277Vac/dc
- Current: 16Amps
- Gender: Male
- Application: Cable Mount
- Contacts: Pins
- Termination: Crimp, excluded, order separately
- Includes Cable Braid Termination
- Temperature: -40° to +120°C
- Gland Size: 5-7mm
- IP Rating: Water and Dust Proof to IP66 / IP68 / IP69K
- Approvals: UL, CSA, VDE & CCC
