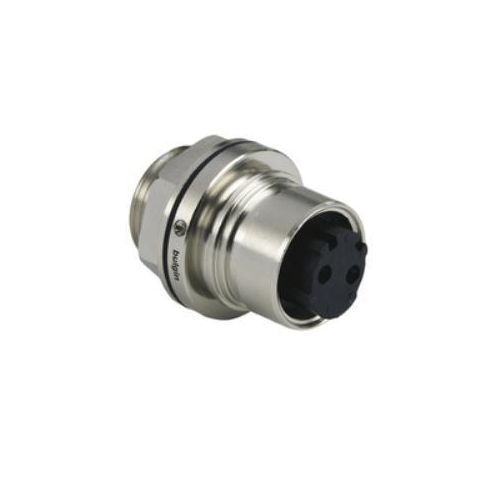

PXM6012/02S/CR | PXM601202SCR | Bulgin 6000 Series
6000 Series Buccaneer Metal 2 Pole Female Front Panel Mount Connector
| Complete Electronics Part No. | PXM601202SCR |
|---|---|
| Manufacturers Part No. | PXM6012/02S/CR |
| Type: | Panel Mount Connector |
| Mounting: | Front Mounting |
| Number of poles | 2 |
| Termination: | Crimp |
| Male/Female: | Female |
| Housing Construction: | Metal |
| Cable Entry: | Straight |
| Rated Voltage: | 277V |
| Rated Current: | 16A |
| IP Rating: | IP66 / 68 / 69K |
Description
PXM601202SCR
Metal 2 Pole Female Front Panel Mount Connector
- Mates with Flex Cable Connector
- Voltage: 277Vac/dc
- Current: 16Amps
- Gender: Female
- Application: Front Panel Mount
- Contacts: Sockets
- Termination: Crimp, excluded, order separately
- Temperature: –40° to +120°C
- IP Rating: Water and Dust Proof to IP66 / IP68 / IP69K
- Approvals: UL, CSA, VDE & CCC
