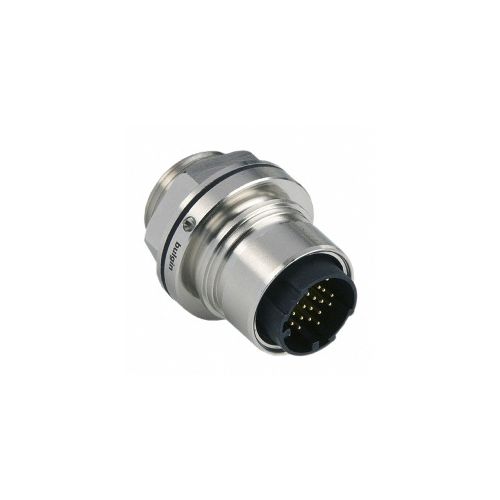

PXM6012/22PCR | PXM601222PCR | Bulgin 6000 Series
Chassis connector, 22 pole pin contacts
| Complete Electronics Part No. | PXM601222PCR |
|---|---|
| Manufacturers Part No. | PXM6012/22P/CR |
| Type: | Panel Mount Connector |
| Number of poles | 22 |
| Termination: | Crimp |
| Male/Female: | Male |
| Housing Construction: | Metal |
| Rated Voltage: | 60V |
| Rated Current: | 3A |
| IP Rating: | IP66 / 68 / 69K |
Description
PXM6012/22PCR
Chassis connector, 22 pole pin contacts
- Voltage: 60Vac/dc
- Current: 3Amps
- Gender: Male
- Application: Front Panel Mount
- Contacts: Sockets
- Termination: Crimp, excluded, order separately
- Operating Temp. Range: –40°C to +120°C
