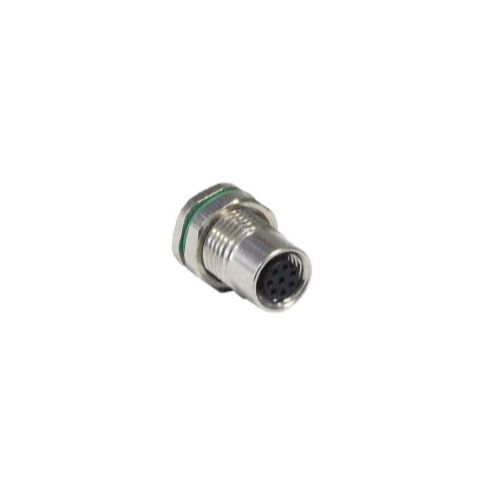

PXMBNI08FPF08AFLM11002 | M8 8 pin Female Front Panel Mount
M8 A-coding 8 Pins Female Panel Mount Connector With Wires(M11*1.0, Front fastened), Cable Length 0.2M
| Complete Electronics Part No. | PXMBNI08FPF08AFLM11002 |
|---|---|
| Manufacturers Part No. | PXMBNI08FPF08AFLM11002 |
| Type: | Connector |
| Mounting: | Front Mounting |
| Male/Female: | Socket |
| Number of poles | 8 |
| Rated Voltage: | 30V |
| Rated Current: | 1.5 A |
| Cable Length: | 0.2 Metre |
| IP Rating: | IP67 |
Description
M8 A Coded 8 pin Female Front Panel Mount Connector
- Max Voltage: 30V
- Max Current: 1.5A
- Coupling Type: Screw
- Contact Type: Socket
- Code A
- Cable Length: 200mm
- Mounting: Panel (Front)
- Body Material: Brass Nickel Plated
- Thread Size M8 x 1.0
- IP Rating: IP67
- Cable insulation: N/A
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 4.34mm
- M8 Series Front Panel Mount Flying Lead
- Commodity Code: 85366900
- Country of Origin: China
