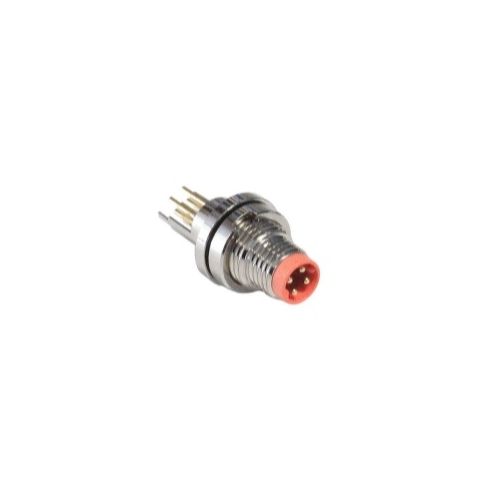

PXMBNI08FPM04PPC | M8 4 pin Male Front Panel PCB Mount
M8 P-coding 4 Pins Male Panel PCB Mount Connector, (Front fastened)
| Complete Electronics Part No. | PXMBNI08FPM04PPC |
|---|---|
| Manufacturers Part No. | PXMBNI08FPM04PPC |
| Type: | PCB Mount |
| Mounting: | Front Mounting |
| Male/Female: | Plug |
| Number of poles | 4 |
| Rated Voltage: | 30V |
| Rated Current: | 1.5 A |
| IP Rating: | IP67 |
Description
M8 P Coded 4 pin male Front Panel/PCB Mount Connector
- Max Voltage: 30V
- Max Current: 1.5A
- Coupling Type: Screw
- Contact Type: Plug
- Code A
- Cable Length: N/A
- Mounting: Panel (Front)
- Body Material: Brass Nickel Plated
- Thread Size M8 x 1.0
- IP Rating: IP67
- Cable insulation: N/A
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 4.34mm
- M8 Series Front Mount to PCB
- Commodity Code: 85366900
- Country of Origin: China
