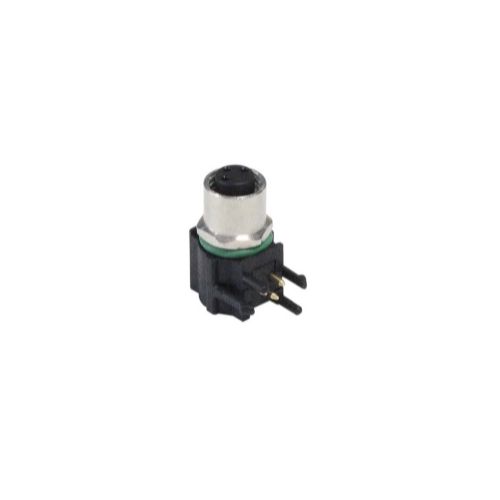

PXMBNI08RAF04APCM8 | M8 4 Pole R/A PCB Mounting Socket
M8 A-coding 4 Pins Female Right Angle Panel Mount (Front Fastened DIP)
| Complete Electronics Part No. | PXMBNI08RAF04APCM8 |
|---|---|
| Manufacturers Part No. | PXMBNI08RAF04APCM8 |
| Type: | Connector |
| Mounting: | PCB - Right Angle |
| Male/Female: | Socket |
| Number of poles | 4 |
| Rated Voltage: | 30V |
| Rated Current: | 3A |
| IP Rating: | IP67 |
Description
M8 4 Pole Right Angled Socket
- PCB Mount
- Max Voltage: 30V
- Max Current: 3A
- Coupling Type: Screw
- Code A
- Cable Length: N/A
- Body Material: Brass Nickel Plated
- Thread Size M8 x 1.0
- IP Rating: IP67
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 4.34mm
- PCB Mount M Series
- Commodity Code: 85366900
- Country of Origin: China
