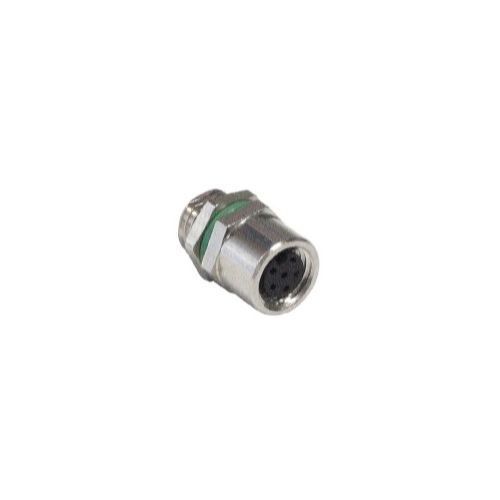

PXMBNI08RPF06AFLM8001 | M8 6 pin Female Rear Mount Connector
M8 A-coding 6 Pins Female Panel Mount With Wires(M8*1.0, Rear fastened)
| Complete Electronics Part No. | PXMBNI08RPF06AFLM8001 |
|---|---|
| Manufacturers Part No. | PXMBNI08RPF06AFLM8001 |
| Type: | Y Connector |
| Mounting: | Rear Mounting |
| Male/Female: | Socket |
| Number of poles | 6 |
| Rated Voltage: | 30V |
| Rated Current: | 1.5 A |
| IP Rating: | IP67 |
Description
M8 A Coded 6 pin Female Rear Mount Connector
- Max Voltage: 30V
- Max Current: 1.5A
- Coupling Type: Screw
- Contact Type: Socket
- Code A
- Cable Length: 100 mm
- Body Material: Brass Nickel Plated
- Thread Size M8 x 1.0
- IP Rating: IP67
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 4.34mm
- M8 Series Rear Panel Mount with Flying Leads
- Commodity Code: 85366900
- Country of Origin: China
