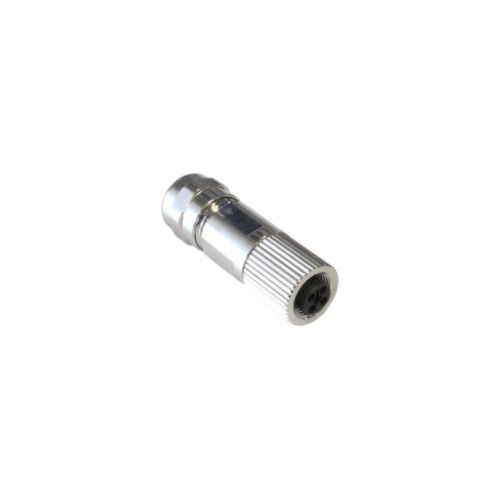

PXMBNI12FBF04TSCPG7 | M12 4 Pole Female connector
M12 T coding 4 Pole Female Panel Mount connector, Brass nickel plated body
| Complete Electronics Part No. | PXMBNI12FBF04TSCPG7 |
|---|---|
| Manufacturers Part No. | PXMBNI12FBF04TSCPG7 |
| Type: | Panel Mount Connector |
| Mounting: | Cable |
| Male/Female: | Female |
| Number of poles | 4 |
| Rated Voltage: | 250V |
| Rated Current: | 4A |
| IP Rating: | IP67 |
Description
M12 4 Pole Female Assembly Connector (Metal)
- Max Voltage: 250V
- Max Current: 4 Amps
- Coupling Type: Screw
- Contact Type: Socket
- Code T
- Mounting: Cable
- Body Material: Brass Nickel Plated
- Thread Size M12 x 1.0
- IP Rating: IP67
- Cable insulation: N/A
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 7.00mm
- M12 Series Brass Nickel Flex Body Connector
- Commodity Code: 85366900
- Country of Origin: China
