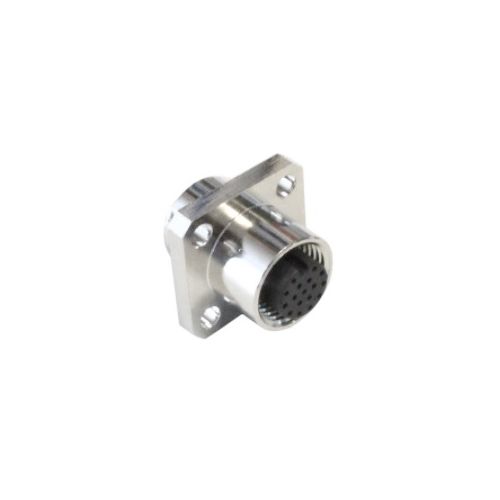

PXMBNI12FLF17AFLFFL001 | M12 17 Pins Female Panel Connector
M12 A coding 17 Pins Female, Fixed Flange Connectors Brass Nickel Plated body with flying leads
| Complete Electronics Part No. | PXMBNI12FLF17AFLFFL001 |
|---|---|
| Manufacturers Part No. | PXMBNI12FLF17AFLFFL001 |
| Type: | Panel Mount Connector |
| Mounting: | Panel Mount with Flange |
| Male/Female: | Female |
| Number of poles | 17 |
| Rated Voltage: | 30V |
| Rated Current: | 1.5 A |
| IP Rating: | IP67 |
Description
M12 A Coded Female, 17 Pin Panel Mount Connector
- Max Voltage: 30V
- Max Current: 1.5A
- Coupling Type: Screw
- Contact Type: Socket
- Code A
- Cable Length: Flying Leads
- Mounting: Flanged Panel
- Body Material: Brass Nickel Plated
- Thread Size M12 x 1.0
- IP Rating: IP67
- Cable insulation: N/A
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 7.00mm
- M12 Series Fixed Flange Connectors
- Commodity Code: 85366900
- Country of Origin: China
