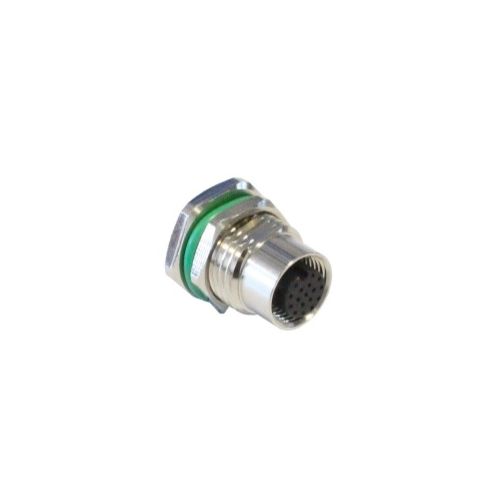

PXMBNI12FPM17AFLM12001 | M12 17 Pole Male Front Fastened
M12 A coding 17 Pole Male Panel Mount Front Fastened connector., Brass nickel plated body with Flying Lead
| Complete Electronics Part No. | PXMBNI12FPM17AFLM12001 |
|---|---|
| Manufacturers Part No. | PXMBNI12FPM17AFLM12001 |
| Type: | Panel Mount Connector |
| Mounting: | Panel Mount |
| Male/Female: | Male |
| Number of poles | 17 |
| Rated Voltage: | 30V |
| Rated Current: | 1.5 A |
| IP Rating: | IP67 |
Description
Front Fastened 17 Pole Male Connector
- Max Voltage: 30V
- Max Current: 1.5 Amps
- Coupling Type: Screw
- Contact Type: Plug
- Code A
- Cable Length: 100mm
- Mounting: Panel
- Body Material: Brass Nickel Plated
- Thread Size M12 x 1.0
- IP Rating: IP67
- Cable insulation: N/A
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 7.00mm
- M12 Series Front and Rear Panel Mount Flying Lead
- Commodity Code: 85366900
- Country of Origin: China
