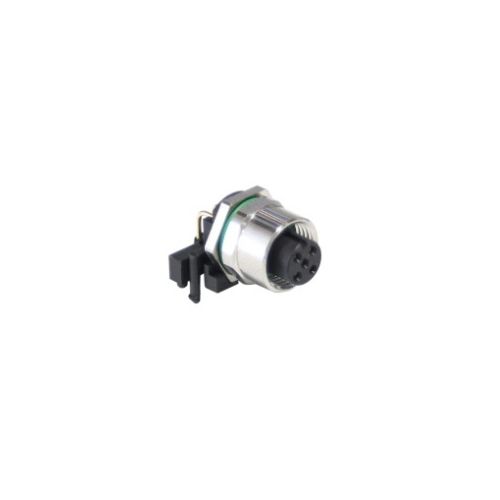

PXMBNI12RAF05APCM12 | M12 5 pin Female R/A PCB Mount
M12 A coding 5 Pins Female, right angled PCB panel mount, front fastened connector
More Information
Complete Electronics Part No.
PXMBNI12RAF05APCM12
Manufacturers Part No.
PXMBNI12RAF05APCM12
Type:
Panel Mount Connector
Mounting:
PCB - Right Angle
Male/Female:
Female
Number of poles
5
Rated Voltage:
60V
Rated Current:
4A
IP Rating:
IP67
Description
M12 A Coded Female, 5 Pin Right Angled PCB Mount
Max Voltage: 60V
Max Current: 4A
Coupling Type: Screw
Contact Type: Socket
Code A
Cable Length: N/A
Mounting: Panel / PCB (Front Fastened)
Body Material: Brass Nickel Plated
Thread Size M12 x 1.0
IP Rating: IP67
Cable insulation: N/A
Operating Temperature: -25ºC to +80ºC
Diameter Over Coupling Ring: 7.00mm
M12 Series Right Angle PCB Mount
Commodity Code: 85366900
Country of Origin: China
