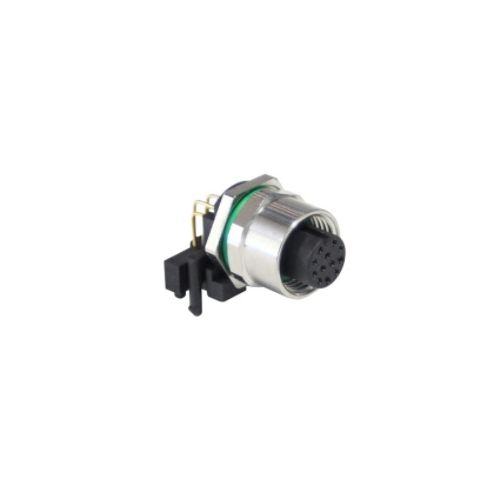

PXMBNI12RAF12APCM12 | M12 12 pin Female R/A PCB Mount
M12 A coding 12 Pins Female, right angled PCB panel mount, front fastened connector
| Complete Electronics Part No. | PXMBNI12RAF12APCM12 |
|---|---|
| Manufacturers Part No. | PXMBNI12RAF12APCM12 |
| Type: | Panel Mount Connector |
| Mounting: | PCB - Right Angle |
| Male/Female: | Female |
| Number of poles | 12 |
| Rated Voltage: | 30V |
| Rated Current: | 1.5 A |
| IP Rating: | IP67 |
Description
M12 A Coded Female, 12 Pin Right Angled PCB Mount
- Max Voltage: 30V
- Max Current: 1.5A
- Coupling Type: Screw
- Contact Type: Socket
- Code A
- Cable Length: N/A
- Mounting: Panel / PCB (Front Fastened)
- Body Material: Brass Nickel Plated
- Thread Size M12 x 1.0
- IP Rating: IP67
- Cable insulation: N/A
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 7.00mm
- M12 Series Right Angle PCB Mount
- Commodity Code: 85366900
- Country of Origin: China
