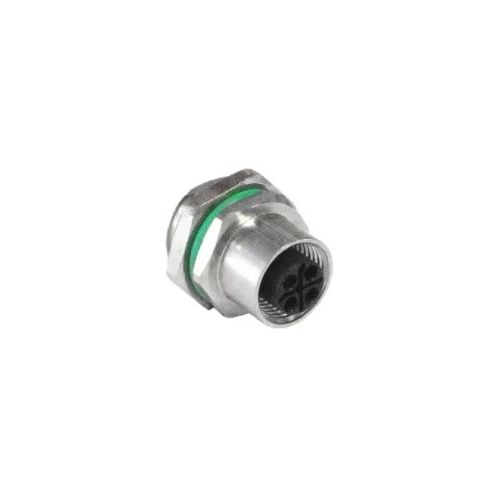

PXMBNI12RPF04SFLM16002 | M12 4 Pole Female Rear Fastened
M12 S coding 4 Pole Female Rear Fastened connector., Brass nickel plated body with flying leads
| Complete Electronics Part No. | PXMBNI12RPF04SFLM16002 |
|---|---|
| Manufacturers Part No. | PXMBNI12RPF04SFLM16002 |
| Type: | Panel Mount Connector |
| Mounting: | Panel Mount |
| Male/Female: | Female |
| Number of poles | 4 |
| Rated Voltage: | 250V |
| Rated Current: | 4A |
| Cable Length: | 0.2 Metre |
| IP Rating: | IP67 |
Description
Rear Fastened 4 Pole Female Connector
- Solder Type
- Max Voltage: 250V
- Max Current: 4 Amps
- Coupling Type: Screw
- Contact Type: Socket
- Code S
- Cable Length: 200mm
- Mounting: Panel
- Body Material: Brass Nickel Plated
- Thread Size M12 x 1.0
- IP Rating: IP67
- Cable insulation: N/A
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 7.00mm
- M12 Series Front and Rear Panel Mount Flying Lead
- Commodity Code: 85366900
- Country of Origin: China
