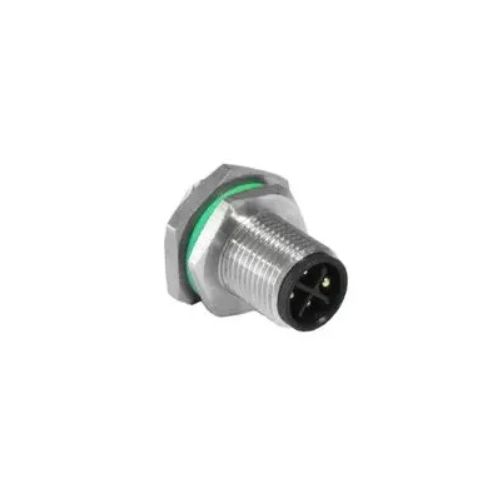

PXMBNI12RPM04TFLM16001 | M12 4 Pole Male Rear Fastened
M12 T coding 4 Pole Male Rear Fastened connector., Brass nickel plated body
| Complete Electronics Part No. | PXMBNI12RPM04TFLM16001 |
|---|---|
| Manufacturers Part No. | PXMBNI12RPM04TFLM16001 |
| Type: | Panel Mount Connector |
| Mounting: | Panel Mount |
| Male/Female: | Male |
| Number of poles | 17 |
| Rated Voltage: | 250V |
| Rated Current: | 4A |
| IP Rating: | IP67 |
Description
Rear Fastened 4 Pole Male Connector
- Solder Type
- Max Voltage: 250V
- Max Current: 4 Amps
- Coupling Type: Screw
- Contact Type: Plug
- Code T
- Cable Length: N/A
- Mounting: Panel
- Body Material: Brass Nickel Plated
- Thread Size M12 x 1.0
- IP Rating: IP67
- Cable insulation: N/A
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 7.00mm
- M12 Series Front and Rear Panel Mount Flying Lead
- Commodity Code: 85366900
- Country of Origin: China
