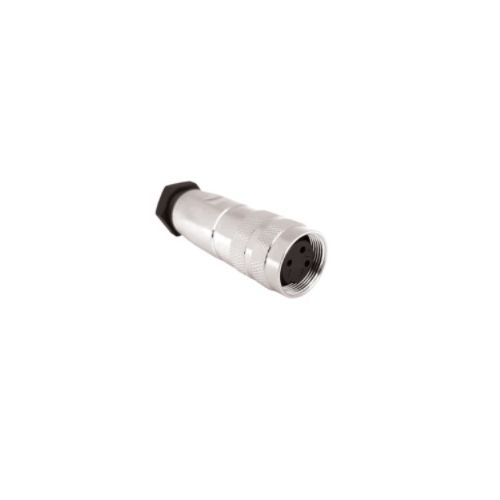

PXMBNI16FBF03ASC | Bulgin Metal Flex Body 3 Pole Socket

M16 Series A Code Brass Nickel Plated Flex Body Connector 3 Pole Socket, IP67, Screw Locking
More Information
Complete Electronics Part No PXMBNI16FBF03ASC
Manufacturers Part No. PXMBNI16FBF03ASC
Type Cable Socket
Number of poles 3
Termination Solder
Male/Female Female
Housing Construction Metal
Rated Voltage 250V
Rated Current 7A
IP Rating IP67
Description

PXMBNI16FBF03ASC

Metal 3 Pole Flex Body Socket

  • A Coded
  • Screw Locking
  • EMI shielding
  • Ingress Protection: IP67 when mated
  • DIN EN 61076-2-106
  • Max Current: 7 Amps
  • Max Voltage 250V
  • Termination: Solder
  • Cable Gland: PG9
  • Temperature: -25°C to +80°C
  • Body Material: Brass Nickel Plated
  • Socket Contacts: Phosphor Bronze, Gold Plating
  • O Rings & Gaskets: Viton
  • 500 Mating Cycles
  • Cable Diameter: 5.0 - 7.5mm
  • Diameter Over Coupling Ring: 18.5mm
  • Colour: Grey
  • RoHS Compliant
