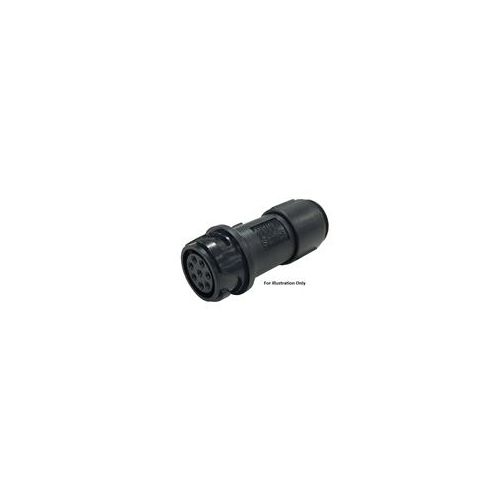

PXP4011/03S/4550 | PXP401103S4550 | Bulgin 4000 Series | Connector
3 Pole Female Flex In Line Cable Connector, 4.5-5.0mm Cable Gland
| Complete Electronics Part No. | PXP401103S4550 |
|---|---|
| Manufacturers Part No. | PXP4011/03S/4550 |
| Type: | Cable Socket |
| Mounting: | Cable |
| Number of poles | 3 |
| Cable Gland Size: | 4.5-5.0 mm |
| Termination: | Crimp |
| Male/Female: | Female |
| Housing Construction: | Plastic |
| Rated Voltage: | 600V |
| Rated Current: | 13A |
| IP Rating: | IP66 / 68 / 69K |
Description
PXP4011/03S/4550
3 Pole Female Flex In Line Cable Connector
- Gender: Female
- Application: Cable Mount
- Voltage: 600Vac/dc
- Current: 13Amps
- Mating: Push/Pull 1/4" Turn Locking (Bayonet)
- Contacts: Excluded but gold plated Crimp/Solder Contacts available separately
- Temperature: -40° to +120°C
- Gland Size: 4.5-5.0mm
- IP Rating: IP66, IP68 & IP69K when mated
- Approvals: EN60058-2-52 & EN60068-2-64
- Approvals (pending): UL, CSA, VDE
- Mates with PXP4010 range
- Accessories: Sealing Cap PXP4082, Gland/Collet Packs PXP4088/3050, PXP4088/5070, Coloured O-Ring & washer pack PXP4089
