PXP4013/03S | PXP401303S | Bulgin 4000 Series | Connector

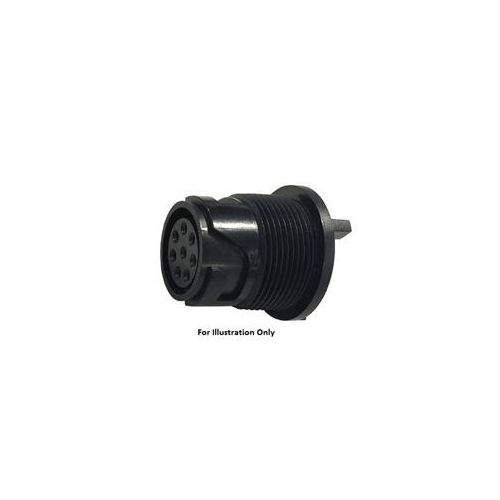

4000 Series Buccaneer 3 Pole Female Rear Panel Mount Connector
More Information
Complete Electronics Part No. PXP401303S
Manufacturers Part No. PXP4013/03S
Type: Panel Mount Connector
Mounting: Rear Mounting
Number of poles 3
Termination: Crimp
Male/Female: Female
Housing Construction: Plastic
Rated Voltage: 600V
Rated Current: 13A
IP Rating: IP66 / 68 / 69K
Description

PX4013/03S

3 Pole Female Rear Panel Mount Connector

  • Gender: Female
  • Application: Panel Mount (Rear)
  • Voltage: 600Vac/dc
  • Current: 13Amps
  • Mating: Push/Pull 1/4" Turn Locking (Bayonet)
  • Contacts: Excluded but gold plated Crimp/Solder Contacts available separately
  • Temperature: -40° to +120°C
  •
  • IP Rating: IP66, IP68 & IP69K when mated
  • Approvals: EN60058-2-52 & EN60068-2-65
  • Approvals (pending): UL, CSA, VDE
  • Mates with PXP4010 range
  • Accessories: Sealing Cap PXP4083, Coloured O-Ring & washer pack PXP4089
