PXP4013/12P/PC | PXP401312PPC | Bulgin 4000 Series | Connector
4000 Series Buccaneer 12 Pole Male Rear Panel Mount Connector
| Complete Electronics Part No. | PXP401312PPC |
|---|---|
| Manufacturers Part No. | PXP4013/12P/PC |
| Type: | Panel Mount Connector |
| Mounting: | Rear Mounting |
| Number of poles | 12 |
| Termination: | Crimp |
| Male/Female: | Male |
| Housing Construction: | Plastic |
| Rated Voltage: | 600V |
| Rated Current: | 3A |
| IP Rating: | IP66 / 68 / 69K |
Description
PX4013/12P/PC
12 Pole Male Rear Panel Mount Connector
- Gender: Male
- Application: Panel Mount (Rear)
- Voltage: 600Vac/dc
- Current: 3Amps
- Mating: Push/Pull 1/4" Turn Locking (Bayonet)
- Contacts: Pin Contacts with straight PC spills
- Temperature: -40° to +120°C
- IP Rating: IP66, IP68 & IP69K when mated
- Approvals: EN60058-2-52 & EN60068-2-68
- Approvals (pending): UL, CSA, VDE

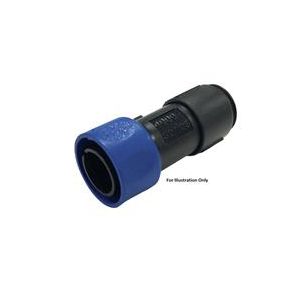

- Mates with PXP4010 range
- Accessories: Sealing Cap PXP4083, Coloured O-Ring & washer pack PXP4089
