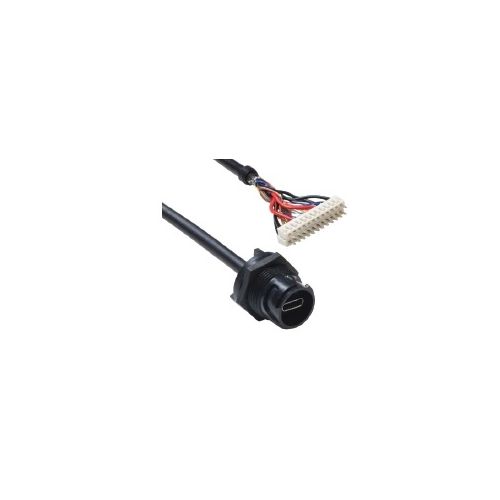

PXP4043/C | PXP4043C | Bulgin Type C USB Lead
Rear Panel Mount IP68 Type 'C' to 2 x 12 way headers, Mates with PXP4040/C and PXP4041/C series
| Complete Electronics Part No. | PXP4043C |
|---|---|
| Manufacturers Part No. | PXP4043/C |
| Type: | Cordset (Shielded) |
| USB Type: | Type C to 2 x 12 way Headers |
| Cordset Type: | Double Ended |
| Mounting: | Panel Mount |
| Number of poles | 24 |
| Cable Length: | 0.15 Metre |
| IP Rating: | IP66 / 68 / 69K |
Description
PXP4043C Type C USB Lead
Rear Panel Mount Connector
- Micro 'C' type to 2 x 12 way headers
- Voltage Rating: ≤ 30V AC
- Current Rating: 5A
- USB 3.2 Gen 2 Supported
- Operatin Temperature: -40°C to +80°C
- Mates with PXP4040/C and PXP4041/C type Cables
- Cable Length 150mm
- IP66 / 68 (10m depth for 2 weeks) / 69K
- EN60068-2-52 Test Kb Salt Mist (Cyclic) Marine Severity Level 1
- Contact material: Copper Alloy - Gold Plated)
- Body and locking ring: PC/PBT
- Cable Jacket material: PVC (Black)
- Screen material: Tinned copper braid
- Flamability: UL94V-0
- RoHS compliant
