PXP6010/02P/CR/0507 | PXP601002PCR0507 | Bulgin 6000 Series

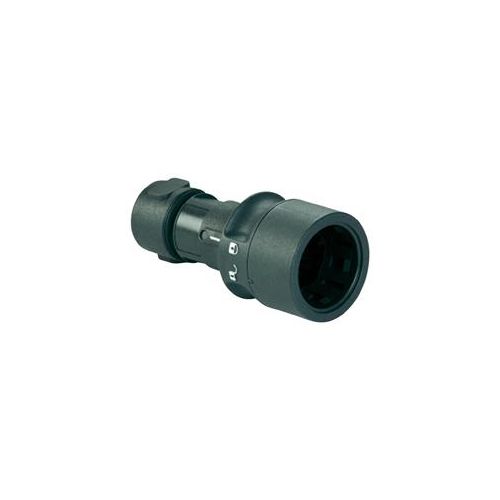

6000 Series Buccaneer Plastic 2 Pole Male Flex Cable Connector
More Information
Complete Electronics Part No. PXP601002PCR0507
Manufacturers Part No. PXP6010/02P/CR/0507
Type: Cable Plug
Mounting: Cable
Number of poles 2
Cable Gland Size: 5.0-7.0 mm
Termination: Crimp
Male/Female: Male
Housing Construction: Plastic
Cable Entry: Straight
Rated Voltage: 277V
Rated Current: 16A
IP Rating: IP66 / 68 / 69K
Description

PXP601002PCR0507

Plastic 2 Pole Male Flex Cable Connector

  • Mates with Flex Cable Connector
  • Voltage: 277Vac/dc
  • Current: 16Amps
  • Gender: Male
  • Application: Cable Mount
  • Contacts: Pins
  • Termination: Crimp, excluded, order separately
  • Temperature: –40° to +120°C
  • Gland Size: 5-7mm
  • IP Rating: Water and Dust Proof to IP66 / IP68 / IP69K
  • Approvals: UL, CSA, VDE & CCC²²
