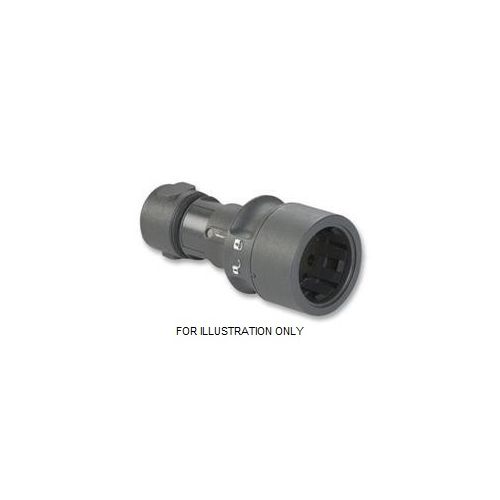

PXP6010/03S/ST/0709 | PXP601003SST0709 | Bulgin 6000 Series
Flex connector, 3 pole socket contacts
| Complete Electronics Part No. | PXP601003SST0709 |
|---|---|
| Manufacturers Part No. | PXP6010/03S/ST/0709 |
| Type: | Cable Socket |
| Number of poles | 3 |
| Cable Gland Size: | 7.0-9.0 mm |
| Termination: | Screw |
| Male/Female: | Female |
| Housing Construction: | Plastic |
| Cable Entry: | Straight |
| Rated Voltage: | 277V |
| Rated Current: | 16A |
| IP Rating: | IP66 / 68 / 69K |
Description
PXP6010/03S/ST/0709
Flex connector, 3 pole socket contacts
- Voltage: 277Vac/dc
- Current: 16Amps
- Gender: Female
- Application: Cable Mount
- Contacts: Sockets
- Termination: Screw
- Wire Size: 1.5mm
- Operating Temp. Range: –40°C to +120°
