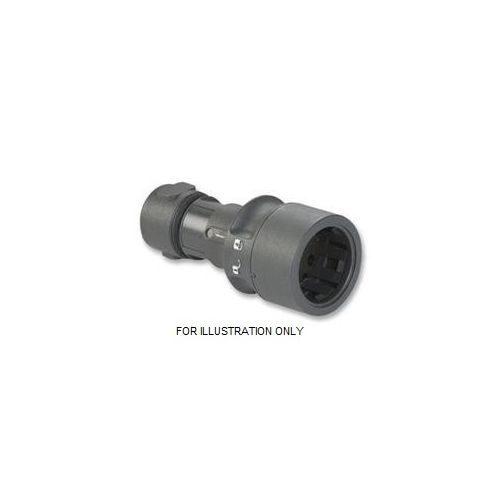

PXP6010/08S/CR/0709 | PXP601008SCR0709 | Bulgin 6000 Series
£2.43
Part Number PXP601008SCR0709 (25 in stock)
Flex connector, 8 pole socket contacts
| Complete Electronics Part No. | PXP601008SCR0709 |
|---|---|
| Manufacturers Part No. | PXP6010/08S/CR/0709 |
| Type: | Cable Socket |
| Number of poles | 8 |
| Cable Gland Size: | 7.0-9.0 mm |
| Termination: | Crimp |
| Male/Female: | Female |
| Housing Construction: | Plastic |
| Cable Entry: | Straight |
| Rated Voltage: | 277V |
| Rated Current: | 10A |
| IP Rating: | IP66 / 68 / 69K |
Description
PXP6010/08S/CR/0709
Flex connector, 8 pole socket contacts
- Voltage: 277Vac/dc
- Current: 10Amps
- Gender: Female
- Application: Cable Mount
- Contacts: Sockets
- Termination: Crimp, excluded, order separately
- Operating Temp. Range: –40°C to +120°
