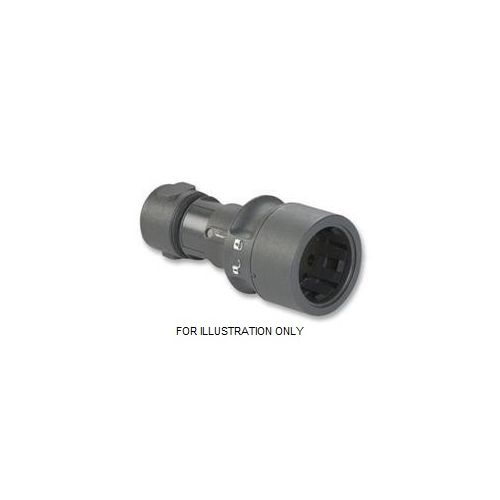

PXP6010/22S/CR/0910 | PXP601022SCR0910 | Bulgin 6000 Series
£2.43
Part Number PXP601022SCR0910 (25 in stock)
Flex connector, 22 pole socket contacts
| Complete Electronics Part No. | PXP601022SCR0910 |
|---|---|
| Manufacturers Part No. | PXP6010/22S/CR/0910 |
| Type: | Cable Socket |
| Number of poles | 22 |
| Cable Gland Size: | 9.0-10.0 mm |
| Termination: | Crimp |
| Male/Female: | Female |
| Housing Construction: | Plastic |
| Cable Entry: | Straight |
| Rated Voltage: | 60V |
| Rated Current: | 3A |
| IP Rating: | IP66 / 68 / 69K |
Description
PXP6010/22S/CR/0910
Flex connector, 22 pole socket contacts
- Voltage: 60Vac/dc
- Current: 3Amps
- Gender: Female
- Application: Cable Mount
- Contacts: Sockets
- Termination: Crimp, excluded, order separately
- Operating Temp. Range: –40°C to +120°
