PXP6011/03P/CR/0405 | PXP601103PCR0405 | Bulgin 6000 Series

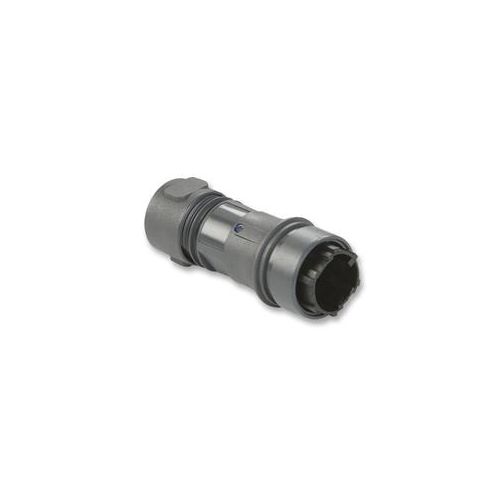

6000 Series Buccaneer Plastic 3 Pole Male Flex In-Line Cable Connector
More Information
Complete Electronics Part No PXP601103PCR0405
Manufacturers Part No. PXP6011/03P/CR/0405
Type Cable Plug
Mounting Cable
Number of poles 3
Cable Gland Size 4.0-5.0 mm
Termination Crimp
Male/Female Male
Housing Construction Plastic
Cable Entry Straight
Rated Voltage 277V
Rated Current 16A
IP Rating IP66 / 68 / 69K
Description

PXP601103PCR0405

Plastic 3 Pole Male Flex In-Line Cable Connector

  • Mates with Flex Cable Connector
  • Voltage: 277Vac/dc
  • Current: 16Amps
  • Gender: Male
  • Application: Cable Mount
  • Contacts: Pins
  • Termination: Crimp, excluded, order separately
  • Temperature: –40° to +120°C
  • Gland Size: 4-5mm
  • IP Rating: Water and Dust Proof to IP66 / IP68 / IP69K
  • Approvals: UL, CSA, VDE & CCC
