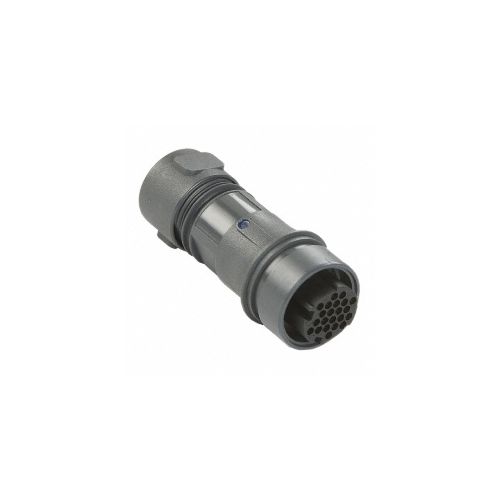

PXP6011/22P/CR/0507 | PXP601122PCR0507 | Bulgin 6000 Series
Flex in-line connector, 22 pole pin contacts
| Complete Electronics Part No. | PXP601122PCR0507 |
|---|---|
| Manufacturers Part No. | PXP6011/22P/CR/0507 |
| Type: | Cable Plug |
| Number of poles | 22 |
| Cable Gland Size: | 5.0-7.0 mm |
| Termination: | Crimp |
| Male/Female: | Male |
| Housing Construction: | Plastic |
| Cable Entry: | Straight |
| Rated Voltage: | 60V |
| Rated Current: | 3A |
| IP Rating: | IP66 / 68 / 69K |
Description
PXP6011/22P/CR/0507
Flex in-line connector, 22 pole pin contacts
- Voltage: 60Vac/dc
- Current: 3Amps
- Gender: Male
- Application: Cable Mount
- Contacts: Pins
- Termination: Crimp, excluded, order separately
- Operating Temp. Range: –40°C to +120°C
