PXP6012/22S/CR | PXP601222SCR | Bulgin 6000 Series
£1.79
Part Number PXP601222SCR (25 in stock)

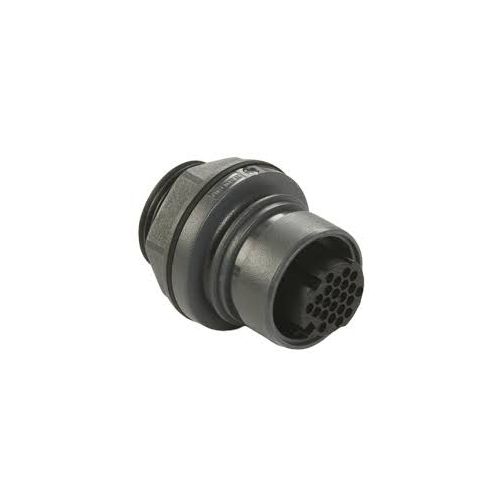

Chassis connector, 22 pole socket contacts
| Complete Electronics Part No. | PXP601222SCR |
|---|---|
| Manufacturers Part No. | PXP6012/22S/CR |
| Type: | Panel Mount Connector |
| Number of poles | 22 |
| Termination: | Crimp |
| Male/Female: | Female |
| Housing Construction: | Plastic |
| Rated Voltage: | 60V |
| Rated Current: | 3A |
| IP Rating: | IP66 / 68 / 69K |
Description
PXP/6012/22S/CR
Chassis connector, 22 pole socket contacts
- Voltage: 60Vac/dc
- Current: 3Amps
- Gender: Female
- Application: Front Panel Mount
- Contacts: Sockets
- Termination: Crimp, excluded, order separately
- Operating Temp. Range: –40°C to +120°C
