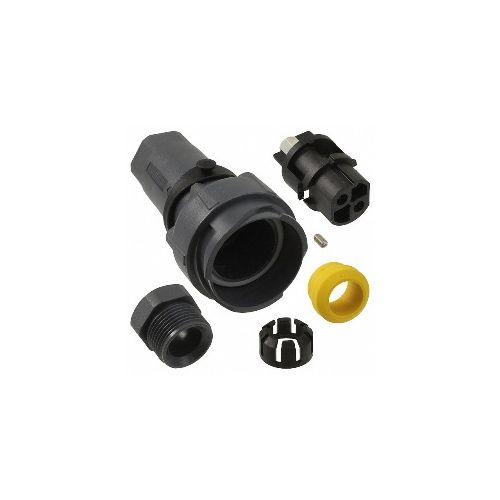

PXP7011/02S/ST/1315 | PXP701102SST1315 | Bulgin 7000 Series
7000 Series Buccaneer Plastic 2 Pole Female Flex In-Line Cable Connector
| Complete Electronics Part No. | PXP701102SST1315 |
|---|---|
| Manufacturers Part No. | PXP7011/02S/ST/1315 |
| Type: | Cable Socket |
| Mounting: | Cable |
| Number of poles | 2 |
| Cable Gland Size: | 13-15 mm |
| Termination: | Screw |
| Male/Female: | Female |
| Housing Construction: | Plastic |
| Rated Voltage: | 600V |
| Rated Current: | 25A |
| IP Rating: | IP66 / 68 / 69K |
Description
PXP7011/02S/ST/1315
2 Pole Female Flex In Line Cable Connector
- Voltage: 600Vac/dc
- Current: 25 Amps
- Gender: Female
- Application: Cable Mount
- Contacts: Sockets
- Termination: Screw
- Temperature range -40 °C/+120 °C
- Mates With Flex Cable Connector PXP7010;
