PXP7011/32P/CR/0911/SN | PXP701132PCR0911SN | Bulgin 7000 Series

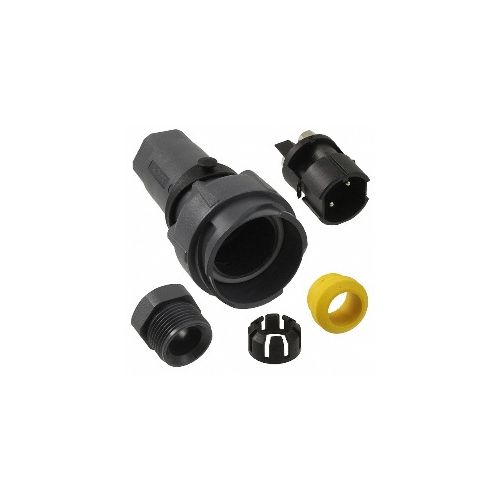

7000 Series Buccaneer Plastic 32 Pole Male Flex In-Line Cable Connector
| Complete Electronics Part No. | PXP701132PCR0911SN |
|---|---|
| Manufacturers Part No. | PXP7011/32P/CR/0911/SN |
| Type: | Cable Socket |
| Mounting: | Cable |
| Number of poles | 32 |
| Termination: | Crimp |
| Male/Female: | Male |
| Housing Construction: | Plastic |
| Rated Voltage: | 600V |
| Rated Current: | 3A |
| IP Rating: | IP66 / 68 / 69K |
Description
PXP701132PCR0911SN
7000 Series Buccaneer
- Plastic 32 Pole Male Flex In-Line Cable Connector
- Mates with Flex Cable Connector
- Voltage: 600Vac/dc
- Current: 3Amps
- Gender: Male
- Application: Cable Mount
- Contacts: Pins
- Termination: Crimp, excluded, order separately
- Includes Cable Braid Termination
- Temperature: –40° to +120°C
- Gland Size: 9-11mm
- IP Rating: Water and Dust Proof to IP66 / IP68 / IP69
- Approvals: UL, CSA, VDE & CCC
