PXP7012/32P/CR | PXP701232PCR | Bulgin 7000 Series

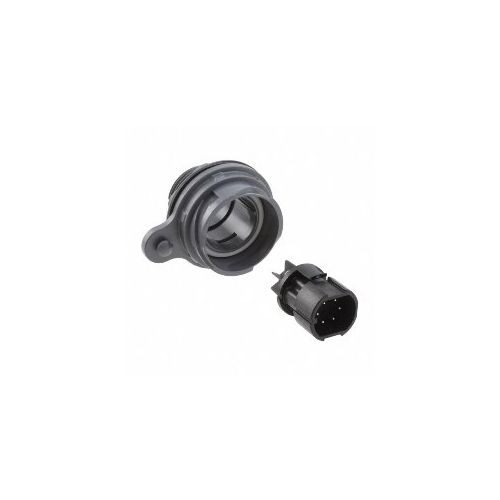

7000 Series Buccaneer Plastic 32 Pole Male Front Panel Mount Connector
| Complete Electronics Part No. | PXP701232PCR |
|---|---|
| Manufacturers Part No. | PXP7012/32P/CR |
| Type: | Panel Mount Connector |
| Mounting: | Front Mounting |
| Number of poles | 32 |
| Termination: | Crimp |
| Male/Female: | Male |
| Housing Construction: | Plastic |
| Rated Voltage: | 600V |
| Rated Current: | 3A |
| IP Rating: | IP66 / 68 / 69K |
Description
PXP7012/32P/CR
32 Pole Male Front Panel Mount Connector
- Voltage: 600Vac/dc
- Current: 3 Amps
- Gender: Male
- Application: Cable Mount
- Contacts: Pins
- Termination: Crimp, excluded, order separately
- Temperature range -40 °C/+120 °C

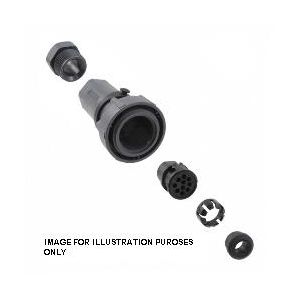

- Mates With Flex Cable Connectors PXP7010
