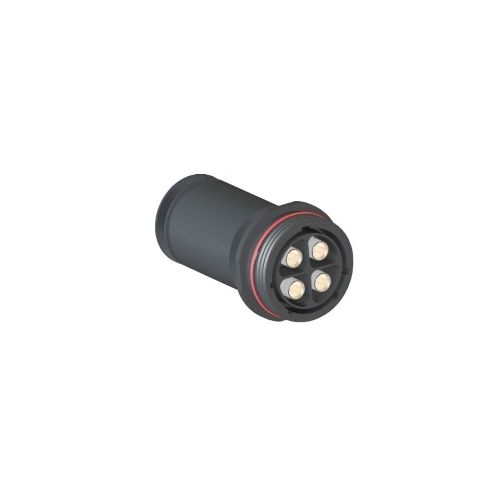

PXP9051/04/S/1 | PXP905104S1 | 9000 Series
4 Pole Female Inline Connector: 1250 V AC RMS, 150 Amps, Cable Mount, Contacts: Socket, Termination: Crimp, Screw Locking
| Complete Electronics Part No. | PXP905104S1 |
|---|---|
| Manufacturers Part No. | PXP9051/04/S/1 |
| Mounting: | Cable |
| Number of poles | 4 |
| Male/Female: | Female |
| Rated Voltage: | 1250V RMS |
| Rated Current: | 150A |
Description
PXP9051/04/S/1
4 Pole Female Inline Cable Connector
- Voltage: 1250 Vac RMS
- Current: 150 Amps
- Gender: Female
- Body Material: Delrin
- Colour: Black
- Contacts: Copper Alloy Silver Plating
- Contact Size: 1/0
- Flammability Rating UL94 V-0
- Application: Cable Mount
- Contacts: Sockets
- Termination: Crimp
- Contact Accommodation: 1/0 (53.5 mm²)
- Operating temperature: -55°C to +125°C
- Screw Locking
- Back Shell Inner Diameter 48.26 mm
- Diameter: (over coupling ring): 80.67mm
- Ingress Protection: IP68
