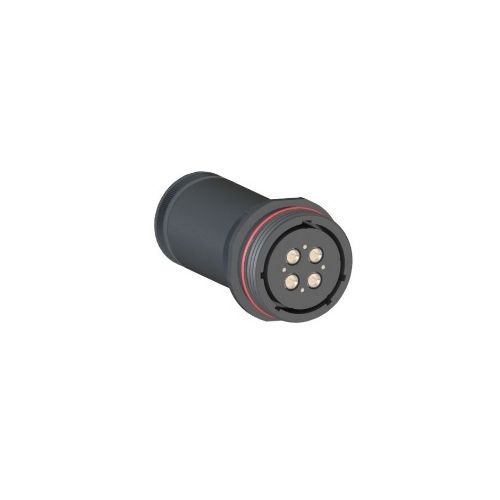

PXP9051/08/S/1 | PXP905108S1 | 9000 Series
PXP9051/08/S/1 | PXP905108S1 | 9000 Series
8 Pole Female Inline Connector: 1250V AC RMS +700V AC RMS, 13A, 80A, Cable Mount, Contacts: Socket, Termination: Crimp, Screw Locking
More Information
Complete Electronics Part No.
PXP905108S1
Manufacturers Part No.
PXP9051/08/S/1
Mounting:
Cable
Number of poles
8
Male/Female:
Female
Rated Voltage:
1250V + 700V RMS
Rated Current:
13A, 80A
Description
PXP9051/08/S/1 8 Pole Female Inline Cable Connector
Voltage: 1250V AC RMS +700V AC RMS
Current: 13A, 80A
Gender: Female
Body Material: Delrin
Colour: Black
Contacts: Copper Alloy Silver Plating
Contact Size: 4x 4 & 16AWG 4x
Flammability Rating UL94 V-0
Application: Cable Mount
Contacts: Sockets
Termination: Crimp
Contact Accommodation: 4x 4 (107.2 mm²) & 16 AWG (1.5 mm²) 4x
Operating temperature: -55°C to +125°C
Screw Locking
Back Shell Inner Diameter 48.26 mm
Diameter: (over coupling ring): 80.67mm
Ingress Protection: IP68
