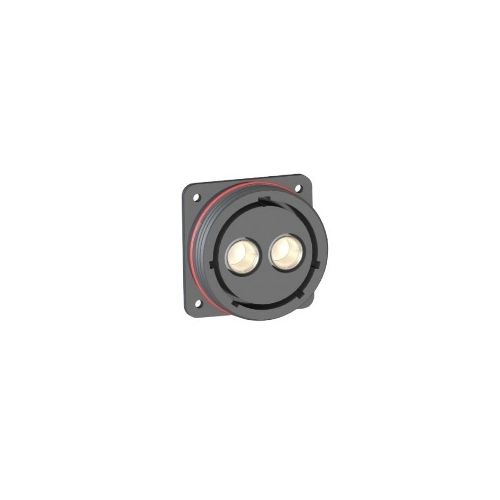

PXP9052/02/S | PXP905202S | 9000 Series
2 Pole Female Connector: 1250 V AC RMS, 225 Amps, Flange Mount, Contacts: Socket, Termination: Crimp, Screw Locking
| Complete Electronics Part No. | PXP905202S |
|---|---|
| Manufacturers Part No. | PXP9052/02/S |
| Mounting: | Flange Fixing |
| Number of poles | 2 |
| Male/Female: | Female |
| Rated Voltage: | 1250V RMS |
| Rated Current: | 225A |
Description
PXP9052/02/S
2 Pole Female Flange Mount Cable Connector
- Voltage: 1250 Vac RMS
- Current: 225 Amps
- Gender: Female
- Body Material: Delrin
- Colour: Black
- Contacts: Copper Alloy Silver Plating
- Contact Size: 4/0
- Flammability Rating UL94 V-0
- Application: Flange Mount
- Contacts: Sockets
- Termination: Crimp
- Operating temperature: -55°C to +125°C
- Screw Locking
- Diameter: (over coupling ring): 80.67mm
