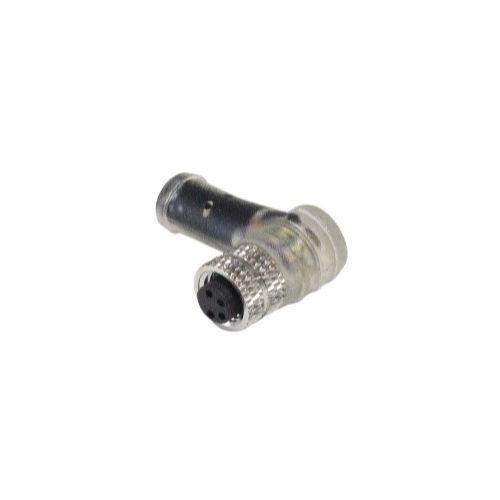

PXPPNP08RAF04ACL030PVC | M8 4 pin Female R/A 3m Cable + LED
M8 4 pin Female right angled connector with 3 metres of Cable, A Coding, With LED PNP,0.25mm²
| Complete Electronics Part No. | PXPPNP08RAF04ACL030PVC |
|---|---|
| Manufacturers Part No. | PXPPNP08RAF04ACL030PVC |
| Type: | Cordset |
| Mounting: | Cable |
| Male/Female: | Socket |
| Number of poles | 4 |
| Rated Voltage: | 30V |
| Rated Current: | 3A |
| Cable Length: | 3 Metres |
| IP Rating: | IP67 |
Description
M8 4 pin Female Right Angled 3m Cable + LED
- Max Voltage: 30V
- Max Current: 3A
- Coupling Type: Screw
- Contact Type: Socket
- Code A
- Cable Length: 3 metres
- Mounting N/A
- Body Material: PVC
- Thread Size M8 x 1.0
- IP Rating: IP67
- Cable insulation: PVC
- With LED PNP
- Overmould cable
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 4.34mm
- M8 Series Pre Wired Flex Overmoulded
- Commodity Code: 85366900
- Country of Origin: China
