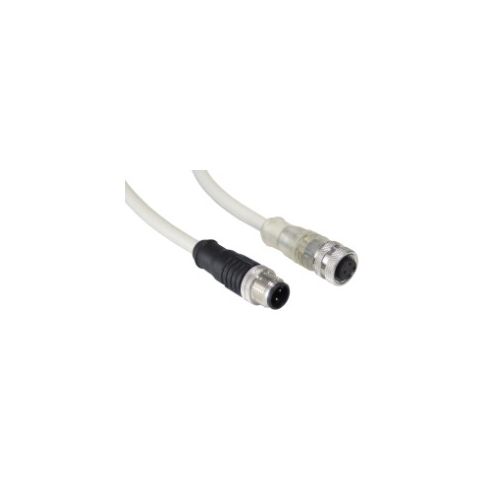

PXPPNP12FBF04AFI006PUR | M12 4 pin plug to Socket Connector
M12 4 pin male straight to female connector with 0.6m metres of Cable, A Coding, With LED PNP, 0.34mm²
| Complete Electronics Part No. | PXPPNP12FBF04AFI006PUR |
|---|---|
| Manufacturers Part No. | PXPPNP12FBF04AFI006PUR |
| Type: | Cordset |
| Mounting: | Cable |
| Male/Female: | Male and Female |
| Number of poles | 4 |
| Rated Voltage: | 250V |
| Rated Current: | 4A |
| Cable Length: | 0.6 Metre |
| IP Rating: | IP67 |
Description
M12 Flex Body to Flex Body Inline Connectors
- Max Voltage: 250V
- Max Current: 4A
- Coupling Type: Screw
- Contact Type: Male / Female
- Code A
- Cable Length: 0.6 metres
- Mounting N/A
- Body Material: PVC
- Thread Size M12 x 1.0
- IP Rating: IP67
- Cable insulation: PUR
- With LED PNP
- Overmould cable
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 7.0mm
- M12 Series Flex Body to Flex Body Inline Connectors
- Commodity Code: 85366900
- Country of Origin: China
