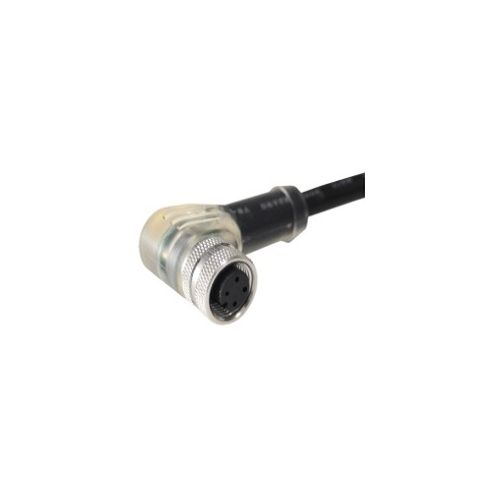

PXPPNP12RAF04ACL100PVC | M12 4 pin socket 10m Cable + LED
M12 4 pin Female R/A connector with 10 metres of Cable, A Coding, With LED PNP,0.34mm²
| Complete Electronics Part No. | PXPPNP12RAF04ACL100PVC |
|---|---|
| Manufacturers Part No. | PXPPNP12RAF04ACL100PVC |
| Type: | Cordset |
| Mounting: | Cable |
| Male/Female: | Socket |
| Number of poles | 4 |
| Rated Voltage: | 250V |
| Rated Current: | 4A |
| Cable Length: | 10 Metres |
| IP Rating: | IP67 |
Description
M12 4 pin Female R/A, 10m Cable + LED
- Max Voltage: 250V
- Max Current: 4A
- Coupling Type: Screw
- Contact Type: Socket
- Code A
- Cable Length: 10 metres
- Mounting N/A
- Body Material: PVC
- Thread Size M12 x 1.0
- IP Rating: IP67
- Cable insulation: PVC
- With LED PNP
- Overmould cable
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 7.0mm
- M12 Series Right Angle Connectors
- Commodity Code: 85366900
- Country of Origin: China
