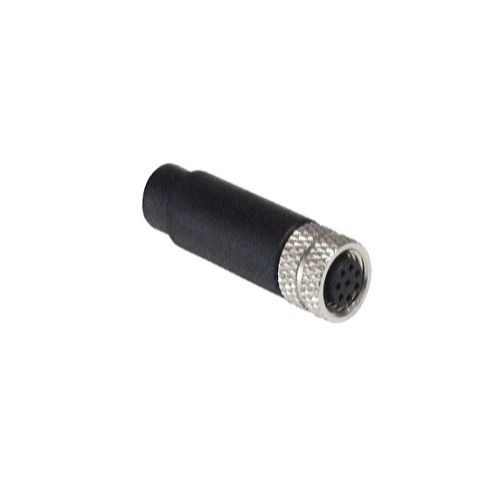

PXPPVC08FBF08ACL010PVC | M8 8 pin Female with 1m Cable
M8 8 pin Female straight connector with 1 metre of Cable, A Coding
| Complete Electronics Part No. | PXPPVC08FBF08ACL010PVC |
|---|---|
| Manufacturers Part No. | PXPPVC08FBF08ACL010PVC |
| Type: | Cordset |
| Mounting: | Cable |
| Male/Female: | Socket |
| Number of poles | 8 |
| Rated Voltage: | 30V |
| Rated Current: | 1.5 A |
| Cable Length: | 1 Metre |
| IP Rating: | IP67 |
Description
M8 A Coded 8 pin Female Connector with 1m cable
- Max Voltage: 30V
- Max Current: 1.5A
- Coupling Type: Screw
- Contact Type: Socket
- Code A
- Cable Length: 1 metre
- Mounting N/A
- Body Material: PVC
- Thread Size M8 x 1.0
- IP Rating: IP67
- Cable insulation: PVC
- Overmould cable
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 4.34mm
- M8 Series Pre Wired Flex Overmoulded
- Commodity Code: 85366900
- Country of Origin: China
