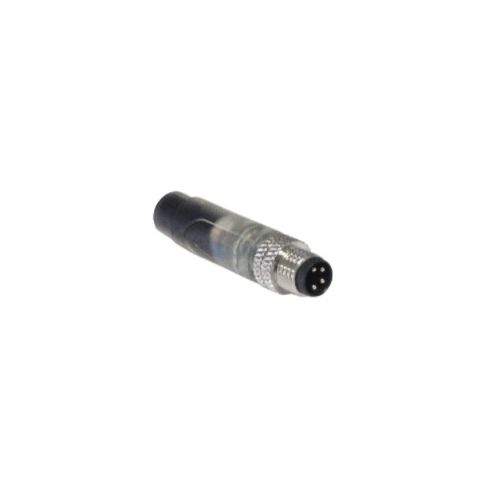

PXPPVC08FIM04PCL010PVC | M8 4 pin Male, 1m cable
M8 P coding connectors 4 Pins Male with 1 metre cable
| Complete Electronics Part No. | PXPPVC08FIM04PCL010PVC |
|---|---|
| Manufacturers Part No. | PXPPVC08FIM04PCL010PVC |
| Type: | Cordset |
| Mounting: | Cable |
| Male/Female: | Plug |
| Number of poles | 4 |
| Rated Voltage: | 30V |
| Rated Current: | 3A |
| Cable Length: | 1 Metre |
| IP Rating: | IP67 |
Description
M8 P Coded 4 pin male connector with 1 metre cable
- Max Voltage: 30V
- Max Current: 3A
- Coupling Type: Screw
- Contact Type: Plug
- Code P
- Cable Length: 1 metre
- Mounting: Panel (Front)
- Body Material: PVC
- Thread Size M8 x 1.0
- IP Rating: IP67
- Overmoulded cable
- Cable insulation: PVC
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 4.34mm
- M8 Series Flex Body Connectors
- Commodity Code: 85366900
- Country of Origin: China
