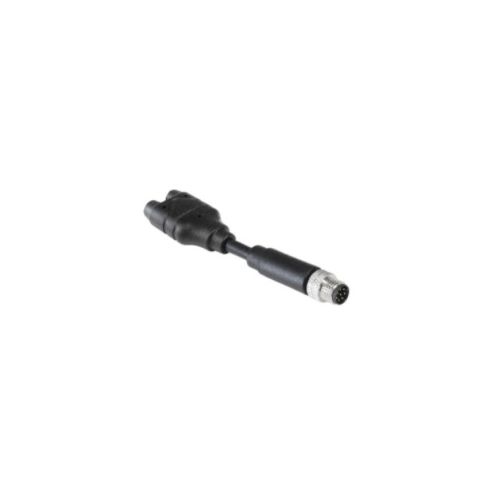

PXPPVC08FIM08AYT010PVC | M8 A coded 8 pin male Y splitter
M8 A coding 8 pins male molding cable ( Y-type splitter ) 1M
| Complete Electronics Part No. | PXPPVC08FIM08AYT010PVC |
|---|---|
| Manufacturers Part No. | PXPPVC08FIM08AYT010PVC |
| Type: | Y Connector |
| Mounting: | Cable |
| Male/Female: | Plug |
| Number of poles | 8 |
| Rated Voltage: | 30V |
| Rated Current: | 1.5 A |
| IP Rating: | IP67 |
Description
M8 A coded 8 pin male Y splitter
- Max Voltage: 30V
- Max Current: 1.5A
- Coupling Type: Screw
- Contact Type: Pin
- Code A
- Cable Length: 1 Metre
- Overmoulded Cable
- Body Material: PVC
- Thread Size M8 x 1.0
- IP Rating: IP67
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 4.34mm
- Y Type M Series
- Commodity Code: 85366900
- Country of Origin: China
