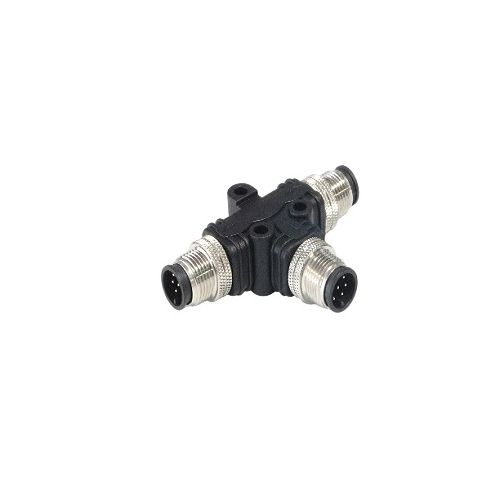

PXPPVC08TSMM03AFIIFI | M8 A coded 3 pin T splitter M to M/M
M8 A coding 3 pins T splitter male to dual male, Thread Size M8 x 1.0, Diameter Over Coupling Ring: 4.34mm
| Complete Electronics Part No. | PXPPVC08TSMM03AFIIFI |
|---|---|
| Manufacturers Part No. | PXPPVC08TSMM03AFIIFI |
| Type: | T Connector |
| Mounting: | Cable |
| Male/Female: | Plug |
| Number of poles | 3 |
| Rated Voltage: | 60V |
| Rated Current: | 3A |
| IP Rating: | IP67 |
Description
M8 3 Pole T Splitter Male to Dual Male
- Max Voltage: 60V
- Max Current: 3A
- Coupling Type: Screw
- Contact Type: Pins
- Code A
- Cable Length: N/A
- Body Material: PVC
- Thread Size M8 x 1.0
- IP Rating: IP67
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 4.34mm
- T Splitter M Series
- Commodity Code: 85366900
- Country of Origin: China
