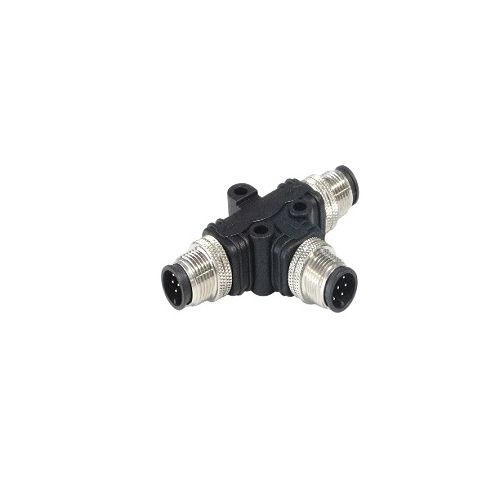

PXPPVC08TSMM04AFIIFI | M8 A coded 4 pin T splitter M to M/M
M8 A coding 4 pins T splitter male to dual male
| Complete Electronics Part No. | PXPPVC08TSMM04AFIIFI |
|---|---|
| Manufacturers Part No. | PXPPVC08TSMM04AFIIFI |
| Type: | T Connector |
| Mounting: | Cable |
| Male/Female: | Plug |
| Number of poles | 4 |
| Rated Voltage: | 30V |
| Rated Current: | 3A |
| IP Rating: | IP67 |
Description
M8 4 Pole T Splitter Male to Dual Male
- Max Voltage: 30V
- Max Current: 3A
- Coupling Type: Screw
- Contact Type: Pins
- Code A
- Cable Length: N/A
- Body Material: PVC
- Thread Size M8 x 1.0
- IP Rating: IP67
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 4.34mm
- T Splitter M Series
- Commodity Code: 85366900
- Country of Origin: China
