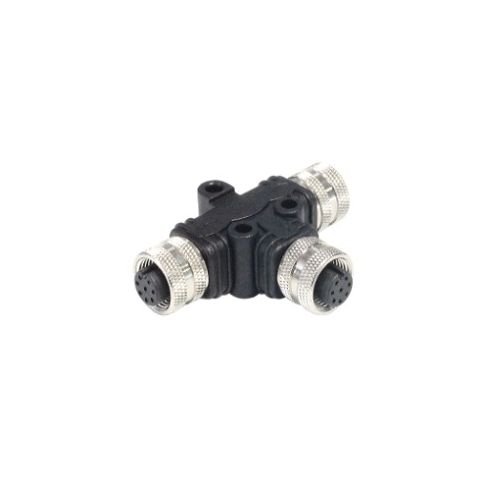

PXPPVC12TSFF08AFBBFB | M12 A coded 8 pin T splitter F to F/F

M12 A coding 8 pins T splitter connector female to dual female, 30v, 2A
More Information
Complete Electronics Part No PXPPVC12TSFF08AFBBFB
Manufacturers Part No. PXPPVC12TSFF08AFBBFB
Type T Connector
Mounting Cable
Male/Female Female
Number of poles 8
Rated Voltage 30V
Rated Current 2A
IP Rating IP67
Description

M12 8 Pole T Splitter Female to Dual Female

  • Max Voltage: 30V
  • Max Current: 2A
  • Coupling Type: Screw
  • Contact Type: Sockets
  • Code A
  • Cable Length: N/A
  • Body Material: PVC
  • Thread Size M12 x 1.0
  • IP Rating: IP67
  • Operating Temperature: -25ºC to +80ºC
  • Diameter Over Coupling Ring: 7.00 mm
  • M12 Series T-Splitter Connector
  • Commodity  Code: 85366900
  • Country of Origin: China
