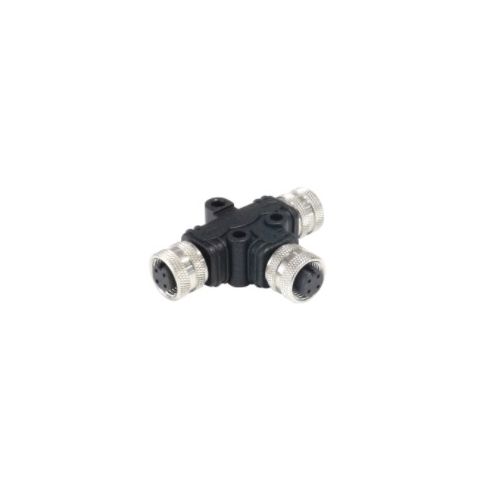

PXPPVC12TSFM04AFBIFB | M12 A coded 4 pin T splitter F to F/M
M12 A coding 4 pins T splitter connector female to male & female, 250v, 4A
| Complete Electronics Part No. | PXPPVC12TSFM04AFBIFB |
|---|---|
| Manufacturers Part No. | PXPPVC12TSFM04AFBIFB |
| Type: | T Connector |
| Mounting: | Cable |
| Male/Female: | Male and Female |
| Number of poles | 4 |
| Rated Voltage: | 250V |
| Rated Current: | 4A |
| IP Rating: | IP67 |
Description
M12 4 Pole T Splitter Female to Male & Female
- Max Voltage: 250V
- Max Current: 4A
- Coupling Type: Screw
- Contact Type: Pins
- Code A
- Cable Length: N/A
- Body Material: PVC
- Thread Size M12 x 1.0
- IP Rating: IP67
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 7.00 mm
- M12 Series T-Splitter Connector
- Commodity Code: 85366900
- Country of Origin: China
