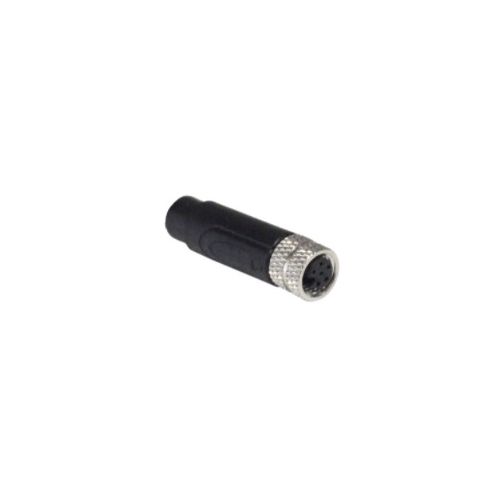

PXPTPU08FBF06ACL020PUR | M8 6 pin Female with 2m cable
M8 6 pin Female connector with 2metres of cable Cable, A Coding
| Complete Electronics Part No. | PXPTPU08FBF06ACL020PUR |
|---|---|
| Manufacturers Part No. | PXPTPU08FBF06ACL020PUR |
| Type: | Cordset |
| Male/Female: | Socket |
| Number of poles | 6 |
| Rated Voltage: | 30V |
| Rated Current: | 1.5 A |
| Cable Length: | 2 Metres |
| IP Rating: | IP67 |
Description
M8 A Coded 6 pin Female Connector with 2m cable
- Max Voltage: 30V
- Max Current: 1.5A
- Coupling Type: Screw
- Contact Type: Socket
- Code A
- Cable Length: 2metres
- Mounting N/A
- Body Material: TPU
- Thread Size M8 x 1.0
- IP Rating: IP67
- Cable insulation: PUR
- Overmoulded Cable
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 4.34mm
- M8 Series Pre Wired Flex Overmoulded
- Commodity Code: 85366900
- Country of Origin: China
