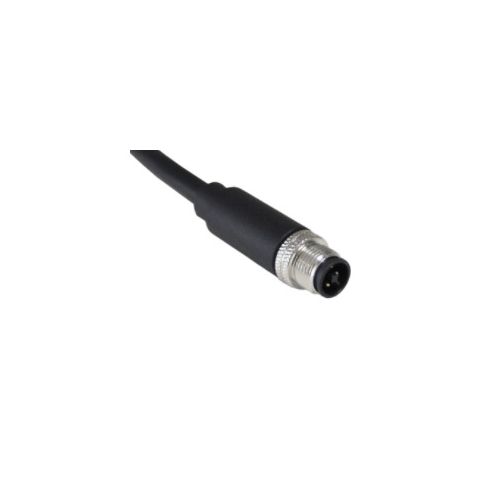

PXPTPU12FIM04TCL010PUR | M12 4 pin male T Coded+1m of cable
M12 4 pin male connector with 1 metre of Cable, T Coding, TPU Body
| Complete Electronics Part No. | PXPTPU12FIM04TCL010PUR |
|---|---|
| Manufacturers Part No. | PXPTPU12FIM04TCL010PUR |
| Type: | Cordset |
| Mounting: | Cable |
| Male/Female: | Socket |
| Number of poles | 4 |
| Rated Voltage: | 250V |
| Rated Current: | 4A |
| Cable Length: | 1 Metre |
| IP Rating: | IP67 |
Description
M12 4 pin male straight, 1metre Cable
- Max Voltage: 250V
- Max Current: 4A
- Coupling Type: Screw
- Contact Type: Socket
- Code T
- Cable Length: 1 metre
- Mounting: Cable
- Body Material: TPU
- Thread Size M12 x 1.0
- IP Rating: IP67
- Cable insulation: PUR
- Overmould cable
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 7.0mm
- M12 Series Flex Body Connectors
- Commodity Code: 85366900
- Country of Origin: China
