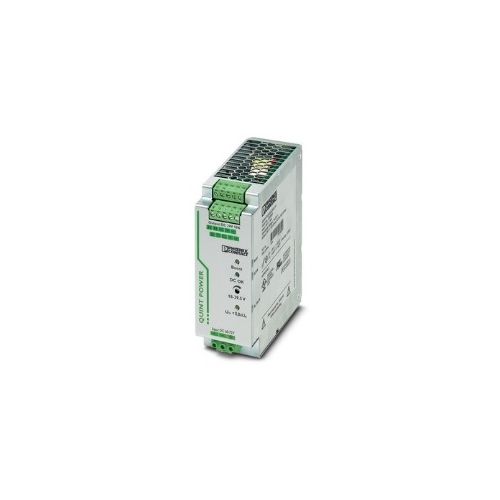

QUINT-PS/60-72DC/24DC/10 | 2905009 | DC/DC Converter

DIN Rail QUINT DC/DC Converter, Nominal input range 60 V DC ... 72 V DC, Nominal output voltage 24 V DC ±1 %, LED indicator, UL approved

More Information
Complete Electronics Part No.	2905009
Manufacturers Part No.	2905009
Nominal Input Voltage:	60 V DC - 72 V DC
Nominal Output Voltage:	24 V DC / 10 A
Output Setting Range:	18 V DC to 29.5 V DC

Description

DIN Rail DC/DC Converter for DIN rail mounting

With SFB (Selective Fuse Breaking)
Nominal input voltage range: input: 60 - 72 V DC
Current Consumption: typ.5.6 A (60 V DC), 4.7 A (72 V DC)
Input Fuse: 10 A 150 V DC (internal (device protection))
Transient surge protection; Varistor
Input Connection method: Screw Connection
Nominal Output Voltage: 24 V DC ±1 %
Setting range of the output voltage 18 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted)
Nominal Output current: 10 A (-40 °C ... 60 °C)
Connection in parallel: YES
Connection in series: YES
Output Connection method: Screw Connection
LED signaling
Housing Material: Metal, Aluminum (AlMg3)
Operating temperature: -25°C ... 70°C (> 60°C Derating: 2,5 %/K)
Width: 48 mm
Height: 130 mm
Depth: 125 mm
Ingress protection: IP20
Weight (excluding packing): 1160g
Customs tariff number: 85044030
GTIN: 4046356908436
UL Approved
Country of origin: China
