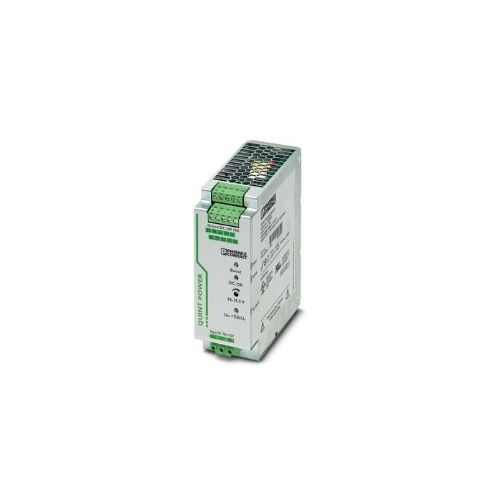

QUINT-PS/96-110DC/24DC/10 | 2905010 | DC/DC Converter
DIN Rail QUINT DC/DC Converter, Nominal input range 96 V DC to 110V DC, Nominal output voltage 24 V DC LED indicator, UL approved
| Complete Electronics Part No. | 2905010 |
|---|---|
| Manufacturers Part No. | 2905010 |
| Nominal Input Voltage: | 96 V DC - 110 V DC |
| Nominal Output Voltage: | 24 V DC / 10 A |
| Output Setting Range: | 24 V DC to 28 V DC |
Description
DIN Rail DC/DC Converter for DIN rail mounting
Primary-switched QUINT DC/DC converter
- SFB Technology (Selective Fuse Breaking)
- Nominal input voltage range: 96 V DC to 110 V DC
- Current Consumption: 3.5 A (96 V DC), 3.1 A (110 V DC)
- Input Fuse: 10 A 150 V DC (internal (device protection))
- Input Connection method: Pluggable screw connection
- Nominal Output Voltage: 24 V DC
- Setting range of the output voltage: 18 V DC ... 29.5 V DC(> 24 V DC, constant capacity restricted)
- Nominal Output current: 10 A
- Output Connection method: Pluggable screw connection
- LED signaling
- Connection in parallel: Yes
- Connection in series: Yes
- Housing Material: Metal, Aluminum (AlMg3)
- Operating temperature: -25°C ... 70°C (> 60 °C Derating: 2,5 %/K)
- Width: 48 mm
- Height: 130 mm
- Depth: 125 mm
- Ingress protection: IP20
- Weight (excluding packing): 1120g
- Customs tariff number: 85044030
- GTIN: 4046356908313
- UL Approved
- Country of origin: China
