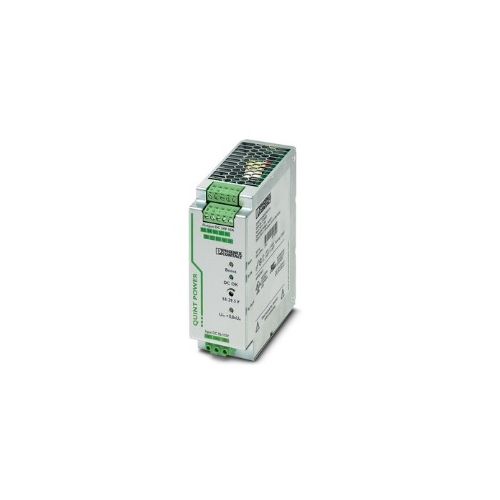

QUINT-PS/96- 110DC/24DC/10/CO | 2905012 | DC/DC Converter
DIN Rail QUINT DC/DC Converter, Nominal input range 96 V DC ... 110 V DC, Nominal output voltage 24 V DC LED indicator, UL approved, Protective Coating
| Complete Electronics Part No. | 2905012 |
|---|---|
| Manufacturers Part No. | 2905012 |
| Nominal Input Voltage: | 96 V DC - 110 V DC |
| Nominal Output Voltage: | 24 V DC / 10 A |
| Output Setting Range: | 18 V DC to 29.5 V DC |
Description
DIN Rail DC/DC Converter for DIN rail mounting
Primary-switched QUINT DC/DC converter
- SFB Technology (Selective Fuse Breaking)
- Protective coating
- Nominal input voltage range: input: 96 - 110 V DC
- Current Consumption: 3.5 A (96 V DC), 3.1 A (110 V DC)
- Input Fuse: 10 A 150 V DC (internal (device protection))
- Transient surge protection; Varistor
- Input Connection method: Screw connection
- Nominal Output Voltage: 24 V DC ±1 %
- Setting range of the output voltage 18 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted)
- Nominal Output current: 10 A (-40°C ... 60°C)
- Connection in parallel: YES
- Connection in series: YES
- Output Connection method: Screw connection
- LED signaling
- Housing Material: Metal, Aluminum (AlMg3)
- Operating temperature: -25°C ... 70°C (> 60°C Derating: 2,5 %/K)
- Width: 48 mm
- Height: 130 mm
- Depth: 125 mm
- Ingress protection: IP20
- Weight (excluding packing): 1130.9g
- Customs tariff number: 85044030
- GTIN: 4046356908337
- UL Approved
- Country of origin: China
